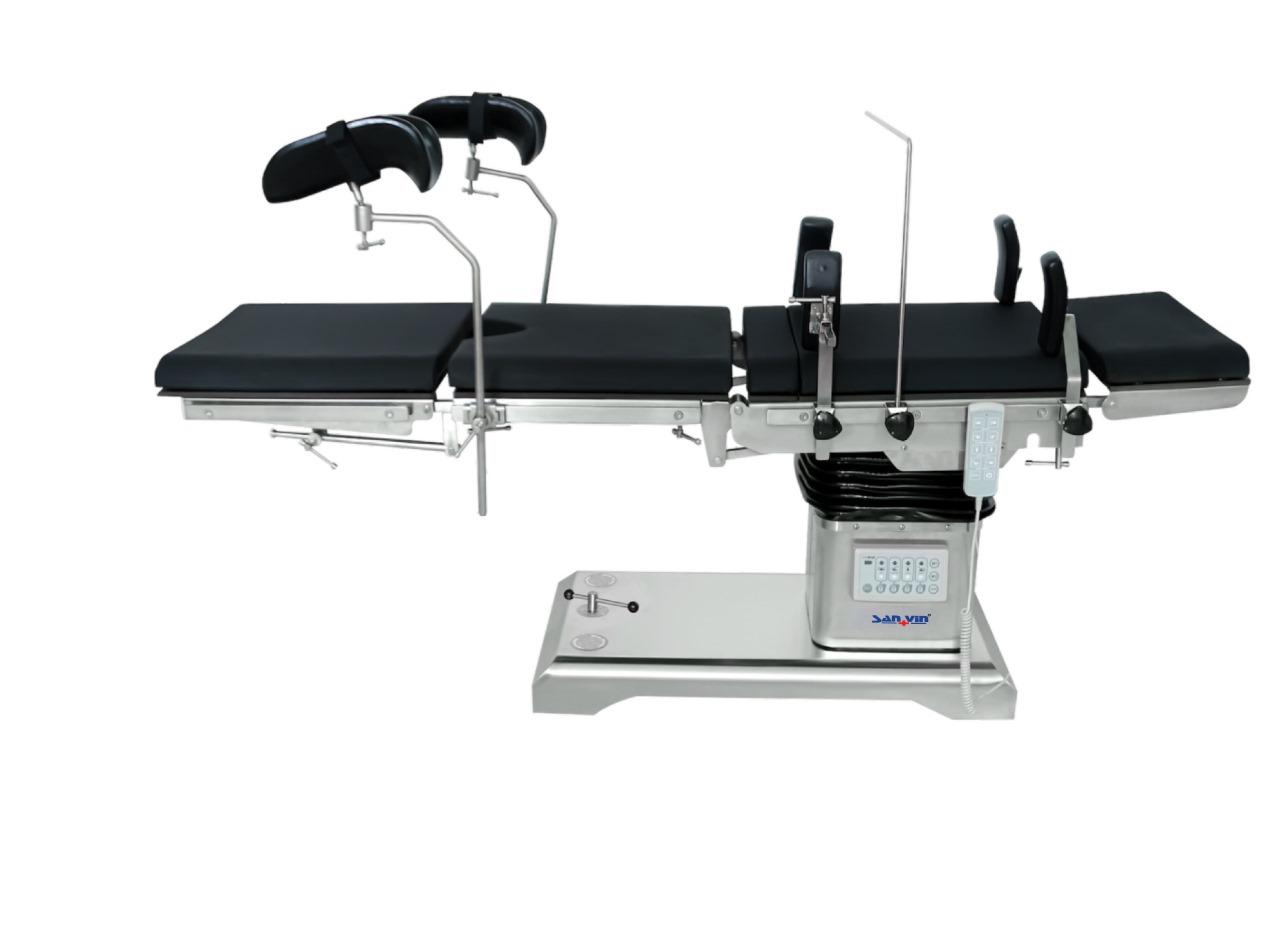

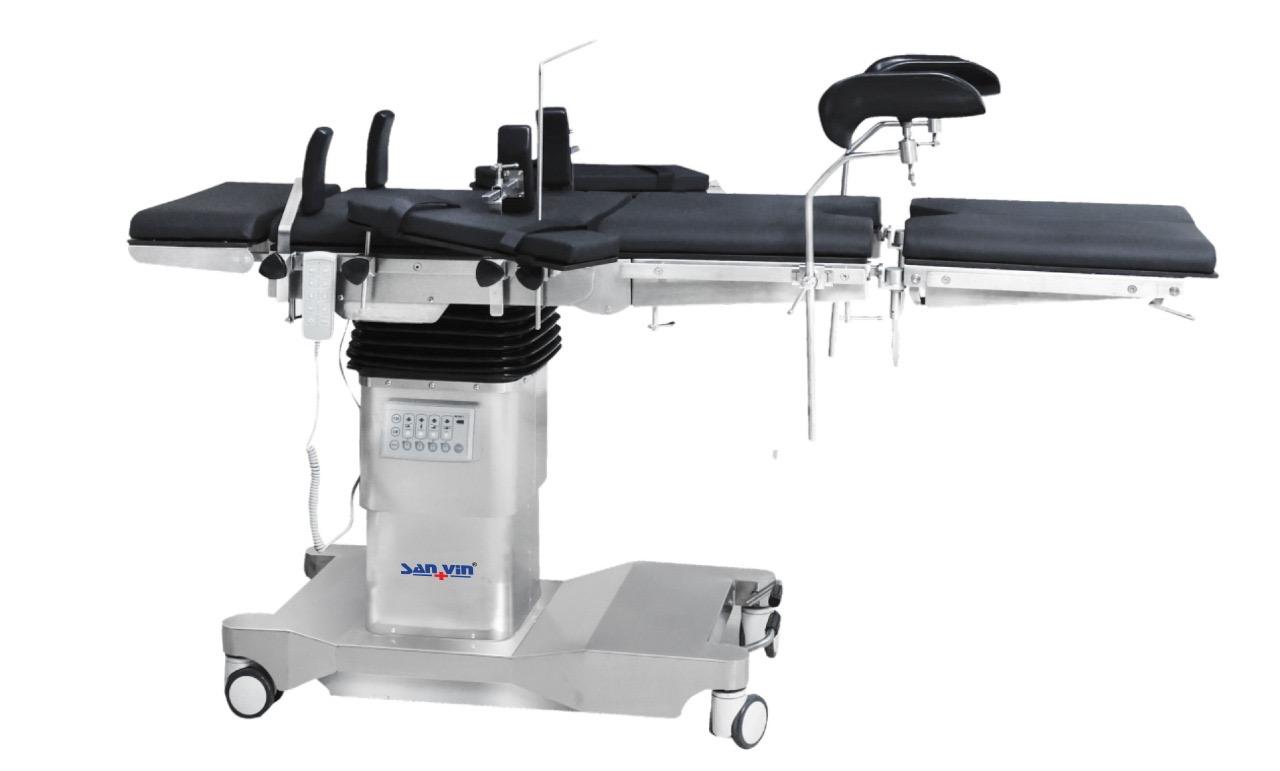

C ARM COMPATIBLE ELECTRO-MANUAL OT TABLE WITH REMOTE, NURSE PANEL AND BATTERY BACKUP

Model: SV-304(E&M) Category

TECHNICAL SPECIFICATION:

● LENGTH OF TABLE : 1910MM
● WIDTH OF TABLE TOP : 522 MM
● HEIGHT ( MIN-MAX) : 750-1000 MM
● TRENDELENBURG (REV) – 25◦
● LATERAL TILT – ±20◦
● BACK SECTION – ±60◦
● HEAD SECTION – ±60◦
● LEG SECTION – 0 ◦ -90◦

STANDARD ACCESSORIES:

● ANESTHETIC SCREEN
● SHOULDER SUPPORTS WITH PAD ● ARM BOARDS WITH PAD
● LATERAL SUPPORT WITH PAD
● KNEE CRUTCHES
● WATER PROOF RUBBER MATTRESS

SUITABLE FOR:

● GENERAL SURGERY
● UROLOGY SURGERY
● GYNECOLOGY
● LAPAROSCOPY
● VASCULAR SURGERY
● CARDIAC SURGERY
● NEUROLOGY SURGERY
● PLASTIC SURGERY

SALIENT FEATURES:

● FIVE SECTION ECCENTRICALLY POSITIONED RADIO – TRANSLUCENT TABLE TOP COMPLETERLY FOR ‘C’ ARM IMAGE INTENSIFIER. ● OPERATING POSITION – HEIGTH UP/DOWN, TRENDELENBURG / REVERSE TRENDELEN , LATERAL TILT& BACK SECTION ALL CONTROLLED BY REMOTE THROUGH OVERSEAS ELECTRO MECHANICAL ACTUATORS, NURSING PANEL & MANUALLY
● FRAME WORK UNDER RADIOLUCENT TOP OF SS BY WHICH 95% OF THE TABLE GETS COVERED WITH S.S
● HEAD /FOOT SECTION & KIDNEY BRIDGE MANUALLY OPERATED ● HEAD AND FOOT SECTION ARE MANUALLY INTERCHANGEABLE AS AND WHEN REQUIED
